Vertical type powder pellet particle grain tanker trailer

• Sturdy and Durable
The high-tensile steel plate with a thickness of 5mm is used for production, so the tank body is sturdy. Advanced welding technology can extend the service life and make the quality more reliable.
• Easy to Unloading
The vertical dry powder tank trailer can be unloaded by gravity, which is more convenient and quicker. Less manpower and resources are involved.
• Bulk Transportation
It can be used for the bulk transportation of various powders and granular materials.

Product Details

Specifications:



Tare Weight 13500Kg
Loading Capacity 45m3
Axle Weight Load 13T
Main Beam Material Q345 Steel
Height(mm) 500
Middle Plate(mm) 8
Down Plate(mm) 16
King Pin 2” or 3.5” traction pin
Dimensions(L*W*H) 11980*2500*4000mm
Tank Body & End Plate Q235/5mm steel & 6mm steel sheet shape: V type

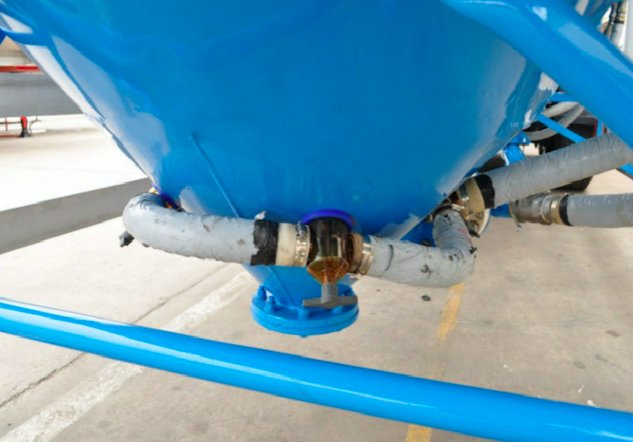

Discharge Valve & Pipe 4” disc valve & 4” seamless steel tube

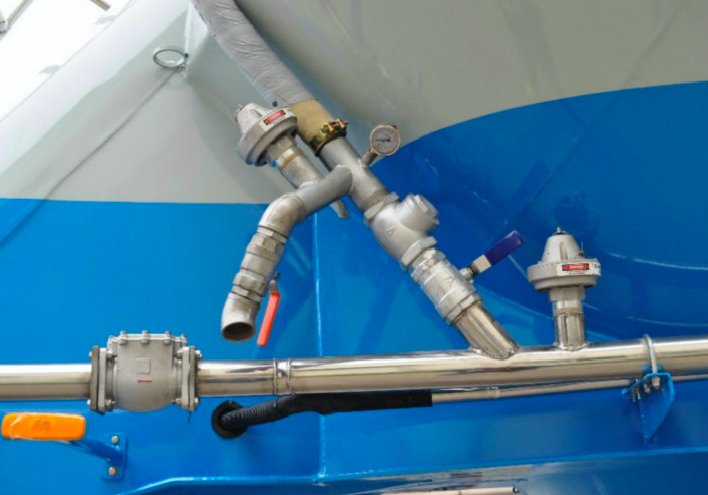

Air-charging System 2” main hole
2” check valve
1.5 safe valve
0.4 Mpa. gauge
Quadratic Blow 1” diameter check valve
Suspension Type Common mechanical
Steel Spring 10/10/10
Axle 2 Axle FUWA Brand
Wheel Rim 9.0-22.5 steel wheel rim
Tire

Spec: 12R22.5;

Number of Tire: 8 pieces

Brake Chamber 4 big chamber
Brake Valve KTL Line Brake/WEBCO
Brake System Dual Line Brake system
Tool Box 1 set standard tool box
Light Tail lamp with turn signal, brake light & reflector, side lamp etc.
Spare Tire Carriers 2 pieces
Leading Gear 28T, Manual operating, Heavy duty landing gear
Powered by

electric type or Diesel engine: Weichai brand model

Power: 4102 model, with 44Kw
